Computer Interface Cum CCTV Attachment

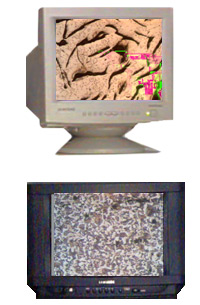

Microscope Type ESM1T, VMM4, VMM6 & INBT2 can be Interfaced to your own computer to give instant photographs of the Microstructure image. This attachment enables you to take sharp & clear Microstructure photographs & & their printouts instantly. The Image can be viewed on computer monitor. The image can be saved on computer hard disk & you can maintain a permanent record of your inspected samples .The saved photographs can be sent to your vendors or clients by Email.In absence of the computer it can be seen on TV This attachment is very much necessary If Image analyzer software is to be used
Following material to be Provided by you
| Computer |
: |
Pentium III / IV ,Minimum 450Mhz or higher,Hard disk 10 GB, RAM 64 MB CD ROM Drive, Windows 98 SE / 2000 |
| Printer |
: |
Color ink jet printer 610C / 640 C of HP or equivalent. |
| TV |
: |
Samsung 14" Color TV or equivalent model with Video in socket |
Following material to be supplied by us as Computer interface attachment
|
|
| CCD Camera |
AVC 550 (PAL) Japan make or equivalent latest available. |
| Pick up element |
1/3" CCD Image sensor |
BLC function |
Auto detect |
| Number of pixel |
512(H)x582(V) PAL |
White balance |
Auto |
| Resolution |
380 TV lines |
Video balance |
1 Vpp, 75O |
| Min.Illumination |
5 Lux/F2.0 |
Power source |
DC 12V |
| S/N Ratio |
More than 45db (AGC off) |
Current consumption |
150 ma |
| Electronic shutter |
1/60(1/50) to 1/100000 auto |
|
| |
- Regulated power supply for the CCD Camera , camera to computer cord
- Camera to Microscope Opto-Mechanical coupler.
- Frame grabber card ( to be fitted inside your Computer on the PCI slot) with its Installation manual and Original CD of the Capture program software.
|
|
