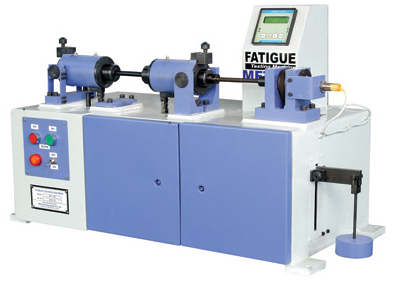

Fatigue Testing Machine

This machine is light, compact and simple design used to test the fatigue strength of materials and draw S-N diagram used for research institutes, laboratories, material manufacturers and various industries.
Table model, no need of foundation.
This is a rotating beam type machine in which load is applied in reversed bending fashion.
The standard 8 mm dia specimen is held in special holders at its ends and loaded such that it experiences a uniform bending moment. The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibres of the specimen is produced during each revolution.
The bending moment is applied with a lever system and can be easily changed by moving a weight over the lever.
Total number of revolutions at which the specimen fails are recorded by a Digital counter.
An interlocking system puts off the motor at specimen failure.
Machine meets requirements of IS 5075-1969.

Sr. No.	Description	Unit	Values
1.	Maximum bending moment	Kg cm	200
2.	Bending moment adjustable	Kg cm	25 – 200
3.	Ranges	Kg cm Kg cm	25 – 125 125 – 200
4.	Gripping dia of specimen	mm	12
5.	Testing dia of specimen	mm	8
6.	Rotating speed	rpm	4200
7.	Accuracy of applied bending moment	%	± 1%
8.	Digital counter	No.of digits - 8
9.	Power required	HP	0.5
10.	Main supply	3 Phase, 440 Volts, 50 Hz, A.C
11.	Overall size (approx)	mm	L 1000 x W 500 x H 600
12.	Weight (approx)	kg	120
