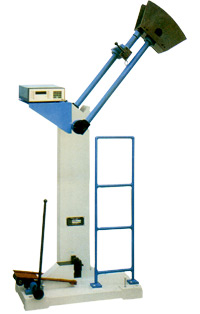

Digital Type Izod / Charpy (ASTM / EN)

Features

  • For Charpy, Lzod Test For Various materials.
  • Model FIT-300-N is as per IS 3766-1977, IS 1598-1977, IS 1757-1988, IS 1499-1977 and BS 131 Part 1,11,111,1V,
  • Model FIT-300-EN & FIT-300-D Conforms to IS, BS Standards as above & also conforms to BS EN 10045 - 1993 (for Charpy)
  • Works on Pendulum Principle, Difference between height of drop of Pendulum before Rupture & Height of Rise after Rupture of specimen is diredty proportional to Impact energy absorbed.
  • Direct Indication of impact energy absorbed by specimen on large dial for FIT-300-N, FIT-300-EN and on Digital Display for FIT-300-D
  • Safety guard for the Pendulum.

Standard Accessories
(For Model FIT-300-N, FIT-300-EN, FIT-300-D)

  • Charpy Striker - 1 No.
  • Izod Striker - 1 No.
  • Charpy Izod Support Block - 1 No.
  • Specimen Setting Gauges - 2Nos.
  • Set of Spanners - 1 Set.

Optional Accessories
(For Model FIT-300-N, FIT-300-EN, FIT-300-D)

  • Specimen setting and centering tong for Charpy test, (useful particularly for carrying out tests at sub zero temp.)
  • Gauge for checking distance of specimen notch from both ends for Charpy and Izod test specimen (One gauge for Charpy and one gauge for Izod)
  • Specimen clamps for round Izod specimen.
  • Gauge for checking std. 'IT notch on specimen.
  • Gauge for checking std.V notch on specimen.
  • Gauge for checking depth below the std.'IT notch on specimen.
  • Gauge for checking depth below the std.V notch on specimen.
  • Template for checking cross section of 1 0 x 10 mm. for Izod / Charpy square test specimen.
  • 'U' notch milling cutter.
  • 'V' notch milling cutter.
