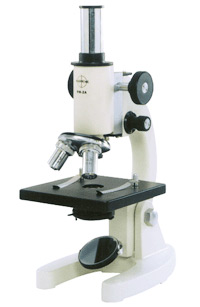

Student Compound Microscope Model
RM-2A

Body Monocular Tube, inclinable upto 90-degrees, length 160mm.
Nosepiece Triple revolving nosepiece with accurate centering and positive click stops
Stage Fixed square stage of 120x120mm with stage clips.
Illumination Plano-Concave 50mm adustable mirror on gimble mount.
Objectives Achromatic 10X & 40X.
Eyepieces Huygenian 5X-10X-15X (any two) or Wide field 10X.

Standard Optical Combinations
Model Condenser Eyepieces (Any Two) Objectives Magnification
RM-2 Iris Diaphragm 5X, 10X, 15X 10X-40X 50X-600X
RM-2A Fixed Condenser  5X, 10X, 15X 10X-40X 50X-600X
RM-2B Moveable Condenser 5X, 10X, 15X 10X-40X SL 50X-600X

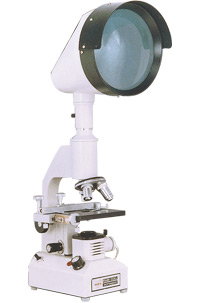

Student Projection Microscope
Model PRM-11A

Body Monocular Fixed Straight Tube, length 160mm.
Nosepiece Triple revolving nosepiece with accurate centering and positiveclick stops
Stage Detachable Mechanical stage for X-Y cross movement 50X75mm, fullygraduated vernier scale.
Illumination 20W halogen lamp, 220/110Volts. Lamp slots provided for naturalcooling of the illuminator.
Objectives Achromatic 4X - 10X- 40XSL.
Eyepieces Huygenian 10X and 15X
Screen 150mm diameter Glass Projection Screen is provided, can be rotatedover 360-degrees on Microscope tube.
Model PRM-11 All specifications are as per PRM-11A but has only 2 Objectives10X & 40X. Screen size 100mm and without mechanical stage.



Student Stereo Microscope
Model RSM-4

Observation Head Binocular head inclined at 45-deg., rotated through 360-deg with adjustable inter-pupillary distance.
Focussing By Rack and Pinion mechanism with adjustable tension collar.
Magnification Standard magnification 20X & 40X with flat field.
Illumination With integral illuminator, 2 lamps are fitted to provide both transmitted and incident illumintation.
Objectives 2 sets of objectives 2X and 4X, selected by rotating nosepiece through 90-degrees.
Eyepieces Standard extra wide field eyepieces WF-10X is provided. Optional WF-15X & WF-20X.
