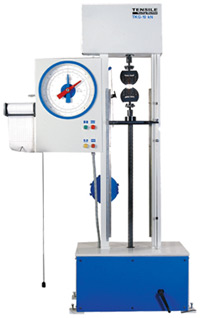

Tensile Testing Machines ( Model : TKG )

  • Variety of tests like Tension, Compression, Cross breaking / Bending, Shear, Linear Bonding / Gripping / Peeling strength of adhesives & tapes, etc. are conducted.
  • Suitable for testing a wide range of materials like rubber, wood, plywood, plastic, rexins, ceramics, teflon, cardboard, latex, composites, ferrous metals, non-ferrous metals,etc. of various forms like round, flat, thread, wires, dumbells, fabric, belts, strips, ropes, etc.
  • Wide range of Grips, Attachments & Special fixtures are available to suit variety of material and shapes.
  • Continuous roll autographic "Load Vs Elongation" recorder.
  • Elongation scale with least count 1 mm.
  • Three measuring ranges for accurate testing.
  • A number of straining speeds are available for proper selection.
  • Machine with AC or DC drive motor is available.
  • Various Models - Maximum Capacity from 200 N to 50 kN.
  • Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
  • Hand operated cutting press with different sizes dies are available for cutting dumbbell specimen.

Technical Specification For Tensile Testing Machines

Max. Capacity Model - TKG Model - TKG Model - TKG
200 N 500 N 1000 N 2500 N 5000 N 10 kN 25 kN 50 kN
Measuring Ranges 1st 0-50 N 0-100 N 0-200 N 0-500 N 0-1000 N 0-2 kN 0-5 kN 0-10 kN
2nd 0-100 N 0-250 N 0-500 N 0- 1000 N 0-2500 N 0-5 kN 0-10 kN 0-25 kN
3rd 0-200 N 0-500 N 0-1000 N 0-2500 N 0-5000 N 0-10 kN 0-25 kN 0-50 kN
Ranges Least Counts 1st 0.1 N 0.2 N 0.4 N 1 N 2 N 0.004 kN 0.01 kN 0.02 kN
2nd 0.2 N 0.5 N 1 N 2 N 5 N 0.01 kN 0.02 kN 0.05 kN
3rd 0.4 N 1 N 2 N 5 N 10 N 0.02 kN 0.05 kN 0.1 kN
Elongation Scale L.C 1 mm 1 mm 1 mm
Grip Speration Minimum -
Maximum - 		25 mm
1000 mm		 25 mm
750 mm		 25 mm
600 mm
Traverse Speeds
Standard Speeds 		10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. 100 mm / min. 25 mm / min
Optional Speeds - Additional speed of 50 mm/min Alternative speed of 1.3 mm/min in place of 25 mm/min OR
10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min.
Additional speed of 500 mm/min
Alternative speed of 1.3 mm/min in place of 100 mm/min
10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm/min.
Optional Variable speed drive stepless variation 50 to 500 mm / min. 10 to 100 mm / min. 2.5 to 25 mm / min.
H.P (for standard speed) 0.25 / 0.5 0.5 0.5
Supply 3 –Phase, 415 Volts, 50Hz, AC
Over travel safety Provided with each model
Recorder (Graph) Provided with each model

NOTE : It is very important that while ordering the machine due care is taken in selecting proper capacity, traverse speeds, grip separation & grips. Following details should be furnished to ensure that testing of the materials is in conformity with the standards followed

  • Size, shape, materials of test specimens.
  • Minimum & Maximum breaking load for test specimen (Not strength).
  • The standard IS / BS / ASTM etc. to be followed.
  • Straining rate required.
  • Please send representative samples.

Dumb-Bell Specimen Cutting Accessories

Hand Operated Cutting Press, Size 150mm x 150mm
Die overall length 50 mm as per IS:34 Part I & II, IS:5831
Die overall length 75 mm as per IS:3400 Part, IS:434 Part I & II, IS:5831
Die overall length 115 mm as per IS:3400 Part I, IS:2414, IS:2415 & IS:443
Die overall length 152 mm as per IS:2076

Grips for Tensile Testing Machines ( All Versions )

Model Capacity Description Specifications Application
TG 1/1 500 N Eccentric Roller grip 25 mm wide x 3 mm thick For Dumbell shaped specimen of rubber and plastics suits TKG-200 N TKG -500 N
TG 1/2 2 kN Eccentric Roller grip 25 mm wide x 5 mm thick For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N TKG-2500 N
TG 1/3 2 kN Eccentric Roller grip 35 mm wide x 6 mm thick For Dumbell shaped specimen of rubber and plastics suits TKG-1000 N TKG -2500 N
TG 1/4 5 kN Eccentric Roller grip 50 mm wide x 6 mm thick For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N TKG-2500 N
TG 1/5 5 kN Eccentric Roller grip 50 mm wide x 6 mm thick For Dumbell shaped specimen of rubber and plastics suits TKG 5000 N TKG 10 kN
TG 2/1 2.5 kN Cam type grip 100 mm wide x 10 mm thick For fabric strip suits TKG-2500 N
TG 2/2 2.5 kN Cam type grip 100 mm wide x 10 mm thick For fabric strip suits TKG-5000 N TKG-10 kN
TG 3/1 200 N Vice type grip 25 mm wide x 4 mm thick For thin flat samples of smaller strength like paper etc suits TKG-200 N
TG 3/2 5 kN Vice type grip 500 mm wide x 25 mm thick For flat materials like asbestos, leather, fabric, plywood suits TKG-2500 N
TG 3/3 5 kN Vice type grip 50 mm wide x 25 mm thick For flat materials like asbestos, leather, fabric, plywood suits TKG-5000 N & TKG-10 kN
TG 3/4 2.5 kN Vice type grip 20 mm wide x 5 mm thick For rigid wires upto 1 mm and flat strips suits TKG-2500 N
TG 3/5 5 kN Vice type grip 100 mm wide x 6 mm thick For fabric specimen suits TKG-2500 N
TG 3/6 5 kN Vice type grip 100 mm wide x 6 mm thick For fabric specimen suits TKG-5000 N TKG-10 kN
TG 3/7 5 kN Vice type grip 200 mm wide x 10 mm thick For fabric specimen suits TKG-5000 N TKG-10 kN
TG 5/1 2.5 kN Wedge type grip 25 mm wide x 5 mm thick For flat strips and wires suits TKG-2500 N
TG 5/2 10 kN Wedge type grip Round 5 to 10 mm Flat 25 mm wide x 10 mm thick For round specimen or flat specimen suits TKG-5000 N & TKG-10 kN
TG 5/3 50 kN Wedge type grip Round 5 to 10 mm Flat 35 mm wide x 12 mm thick For round specimen or flat specimen suits TKG-50 kN
TG 5/4 2.5 kN Wedge type grip Flat 25 mm wide x 20 mm thick For extra thick plywood specimen suits TKG-2500 N
TG 5/5 50 kN Wedge type grip Flat 200 mm wide x 5 mm thick For geo textile as per ASTM suits TKG-50 kN
TG 5/6 50 kN Wedge type grip Flat 38 mm wide x 20 mm thick For extra thick specimen like plywood suits TKG-25 & 50 kN
TG 6/1 2.5 kN O ring test fixture - For testing O rings suits TKG-2500 N
TG 7/1 500 kN Bollard type grip 20 SWG or finer For fine flexible wires suits TKG-200 N TKG-500 N
TG 7/2 1000 kN Bollard type grip Tape width 6 mm max. For HDPE tape suits TKG-1000 N
TG 7/3 2.5 kN Bollard type grip 20 SWG or finer For fine flexible wires suits TKG-2500 N
TG 7/4 2.5 kN Bollard type grip 20 SWG or finer For fine flexible wires suits TKG-10 kN
TG 7/5 2.5 kN Bollard type grip 20 SWG or finer For fine flexible wires suits TKG-25 kN TKG-50 kN
TG 7/6 5 kN Bollard type grip Dia 4mm ropes. For non metallic ropes / cords of nylon etc suits TKG-5000 N
TG 8/1 10 kN Vice cum wedge type grip Upto 5 mm dia, Flat 25 mm wide x 5 mm thick For wires and flat strips suits TKG-10 kN
TG 8/2 50 kN Vice cum wedge type grip Round 5 to 10 mm, Flat 35 mm wide x 10 mm thk For wires. Rods, and strips suits TKG-25 kN TKG-50 kN
TG 8/3 50 kN Vice cum wedge type grip Flat 35 mm wide x 5 mm thick. For harder wires and strips suits TKG-25 kN TKG – 50 kN
TG 8/4 50 kN Vice cum wedge type grip Flat 60 mm wide x 10 mm thick. For wider flat strips suits TKG-25 kN TKG-50 kN
TG 9/1 10 kN Special Bollard grip Dia 10 to 16 mm For Nylon ropes suits TKG-10 kN
TG 9/2 25 kN Special Bollard grip Dia 10 to 16 mm For Nylon ropes suits TKG-25 kN TKG-50 kN
TG 9/3 50 kN Special Bollard grip 50 mm wide For flat belts and strips suits TKG-25 kN TKG-50 kN
TG 9/4 50 kN Special Bollard grip 100 mm wide For flat belts and strips suits TKG-25 kN TKG-50 kN
TG 10/1 10 kN Grip for special shaped specimen As per IS 867 For moulded plastic specimen as per IS 867 suits TKG-2500 N
TG 10/2 10 kN Grip for special shaped specimen As per IS 867 For moulded plastic specimen as per IS 867 suits TKG-10 kN
TG 10/3 10 kN Grip for special shaped specimen As per IS 867 For moulded plastic specimen as per IS 867 suits TKG-25 kN TKG-50 kN
TG 11/1 200 N Compression cage 85 (L) x 60 (D) x 140 (H) mm with dial gauge and scale For compression test on flexible / soft materials suits TKG- 200 N
TG 11/2 200 N Compression cage 85 (L) x 60 (D) x 140 (H) mm without dial gauge and scale For compression test on flexible / soft materials suits TKG-200 N
TG 11/3 2.5 kN Compression cage 100 (L) x 65 (D) x 200 (H) mm For compression test on flexible/soft materials suits TKG-2500 N
TG 11/4 10 kN Compression cage 150 (L) x 80 (D) x 200 (H) mm For compression test on flexible/soft materials suits TKG-10 kN
TG 11/5 50 kN Compression cage 150 (L) x 150 (D) x 200 (H) mm For compression test on flexible / soft materials suits TKG- 25 50 kN
TG 11/6 50 kN Compression cage with dial gauge scale and ball edge. 80 (L) x 60 (D) x 60 (H) mm For compression test on flexible / soft materials suits TKG-25 50 kN
TG 11/7 50 kN Compression cage with fixtures As per IS 10570 / 83 For cold crushing strength suits TKG- 25 kN 50 kN
TG 11/8 10 kN Compression cage with dial gauge and ball cage 50 x 50 x 50 mm specimen For compression test on plywood etc suits TKG-10 kN
TG 12/1 2.5 kN Bend / cross breaking test fixture 50 wide x 25 thk x 150 mm span 5 mm roller radius. For conducting cross breaking test or bend test suits TKG-2500 N
TG 12/2 10 kN Bend / cross breaking test fixture 25 wide x 35 thk x 150 to 300 mm span. For conducting cross breaking test or bend test suits TKG-10 kN
TG 12/3 25 kN Bend / cross breaking test fixture 25 wide x 35 thk x 150 to 400 mm long span. For conducting cross breaking test or bend test suits TKG-25 kN 50 kN
TG 12/4 25 kN Bend / cross breaking test fixture 60 wide x 10 thk x 90 mm span roller dia 30 mm For a specimen 60 wide x 10 thk x 120 mm long suits TKG-25 kN TKG 50 kN
TG 12/5 25 kN MOR test fixture with compression cage 40 x 40 mm specimen x 100 span For conducting on refractory castables as per IS 10570 / 83 suits TKG 25- kN 50 kN
TG 12/6 1 kN Cross breaking test fixture 50 wide x 100 mm span Roller radius 3.2 mm For testing brake shoe material as per IS 2742 part 3 suits TKG- 2500 N
TG 12/7 2500 N MOR test fixture 500 mm span x width 100 mm For plywood.
TG 12/8 10 kN MOR test Fixture with dial gauge 600 mm span x 80 mm width support radius 12, 18, 27, 37.5 mm For plywood.
TG 12/9 5 kN Bend test Fixture 600 mm span x width 50 mm For two point loading as per IS 1734 part II suits TKG-25 50 kN
TG12/10 10 kN Cross breaking test fixture Span 500 mm x width 100 mm Roller dia 15 For MOR test as per IS 1658 / 77.
TG 13/1 - Hand operated Press 150 mm wide For cutting Dumbell shaped rubber specimen with respective dies suits TKG-2500 N
TG 14/1 25 kN Shear strength attachment 20 mm width x 10 mm thk For testing internal shear strength as per IS 2742-92 Part 5 suits TKG-25 50 kN
TG 14/2 10 kN Glue shear test attachment. 30 mm wide x 25 mm thk. For glue shear testing of plywood suits TKG-10 kN
TG 14/3 10 kN Shear test fixture Dia 12.7 mm For shear testing of laminates as per IS 1998 suits TKG-25 50 kN
TG 15/1 10 kN Grip for plywood screw & nail withdrawl test 75 mm wide specimen For testing plywoods as per IS 2380 part XIV suits TKG-10 kN
TG 15/2 10 kN Grip for plywood tensile strength perpendicular to surface 50 x 50 mm specimen For plywood as per IS 2380 Part V suits TKG-10 kN
TG 15/3 25 kN Grip for plywood screw & nail with drawl test 75 mm wide specimen For testing plywood as per IS 2380 Part XIV suits TKG-25 & 50 kN
TG 15/4 25 kN Grip for plywood tensile strength perpendicular to surface 50 x 50 mm specimen. For plywood as per IS 2380 Part V suits TKG- 25 50 kN
TG 21 10 kN Special grip for fanhook - For testing fan hook suits TKG-25 50 kN
TG 22/1 1 kN Grip for security of attachment of bottom stops of Zip - For testing of Zip as per Annexure D of IS: 3148- 1991 Fig.7 suits TKG-2500 N
TG 22/2 1 kN Grip for security of attachment for top steps & puller - For testing Zip as per Annexure H of IS: 3148- 1991 (Fig 11 and Fig. 8)
